SiC vs. MoSi2 Heating Elements in High Temperature Furnaces

Choosing the correct heating element is arguably the most critical decision when configuring a furnace for extreme thermal applications. The heating elements dictate not just the maximum achievable temperature, but also the furnace’s longevity, operational efficiency, and suitability for specific atmospheric conditions. For demanding industrial and laboratory processes, the debate almost always narrows down to two premier ceramic materials: Silicon Carbide (SiC) and Molybdenum Disilicide (MoSi2).

This comprehensive buyer’s guide delves deep into the characteristics, advantages, limitations, and ideal applications of both SiC and MoSi2 heating elements. By understanding the nuanced differences between these two technologies, engineers, researchers, and procurement specialists can make informed decisions that optimize their high-temperature processes and maximize return on investment.

Introduction to Advanced Ceramic Heating Elements

In the realm of thermal processing, conventional metallic alloys (like Ni-Cr or Fe-Cr-Al) simply cannot withstand the extreme heat required for processes such as advanced ceramics sintering, powder metallurgy, or high-temperature material testing. When target temperatures exceed 1200°C (2192°F) consistently, non-metallic ceramic elements become essential.

Both Silicon Carbide and Molybdenum Disilicide are electrically conductive ceramic compounds. They generate heat through resistance (Joule heating). When an electrical current passes through them, their inherent resistance causes them to dissipate energy in the form of intense heat. While they share this fundamental operating principle, their physical properties, chemical resistance, and thermal profiles are significantly different.

Understanding these differences is the key to selecting the right component for your high temperature furnace, ensuring it performs reliably under your specific operational parameters.

Silicon Carbide (SiC) Heating Elements: The Industry Workhorse

Silicon Carbide (SiC) heating elements have been an industry standard for decades. Known for their robustness and versatility, they are manufactured by extruding or casting high-purity silicon carbide grains into various shapes, followed by a reaction-bonding or recrystallization process at extremely high temperatures.

Key Characteristics of SiC Heaters

SiC heaters are renowned for their self-supporting structure and excellent high-temperature strength. They can be mounted horizontally or vertically without sagging, which offers significant flexibility in furnace design.

• Maximum Operating Temperature: Typically up to 1600°C (2912°F) in an air atmosphere.
• Atmospheric Compatibility: SiC performs best in oxidizing atmospheres (air). The elements form a protective layer of silicon dioxide (SiO2) on their surface during operation, which shields the underlying material from further oxidation.
• Shapes and Configurations: Available in a wide variety of shapes, including straight rods (Solid or Tubular), U-shapes, W-shapes, and spirals. This variety allows for tailored heat distribution within the chamber.
• Electrical Characteristics: SiC elements exhibit a non-linear resistance-temperature curve. Initially, as they heat up from room temperature, their resistance drops. However, above approximately 600°C to 800°C, the resistance begins to increase positively with temperature.

The Phenomenon of “Aging” in SiC

One of the most critical factors to consider when using SiC elements is “aging.” Over time, as the element operates at high temperatures, the protective SiO2 layer gradually thickens. This oxidation process increases the electrical resistance of the element.

To maintain a constant power output (and therefore a consistent furnace temperature) as the resistance increases, the applied voltage must be proportionally increased. Therefore, furnaces equipped with SiC elements must utilize variable voltage power supplies (like SCRs or multiple-tap transformers) capable of accommodating a resistance increase of up to 300% to 400% over the element’s lifespan. When the voltage required to maintain power exceeds the capacity of the power supply, the elements have reached the end of their useful life and must be replaced.

Ideal Applications for SiC

• Routine Heat Treatment: Annealing, tempering, and hardening of metals where temperatures do not exceed 1500°C.
• Ceramic Firing: Kilns for pottery, structural clay, and standard technical ceramics.
• Glass Melting: Laboratory-scale glass melting and holding furnaces.

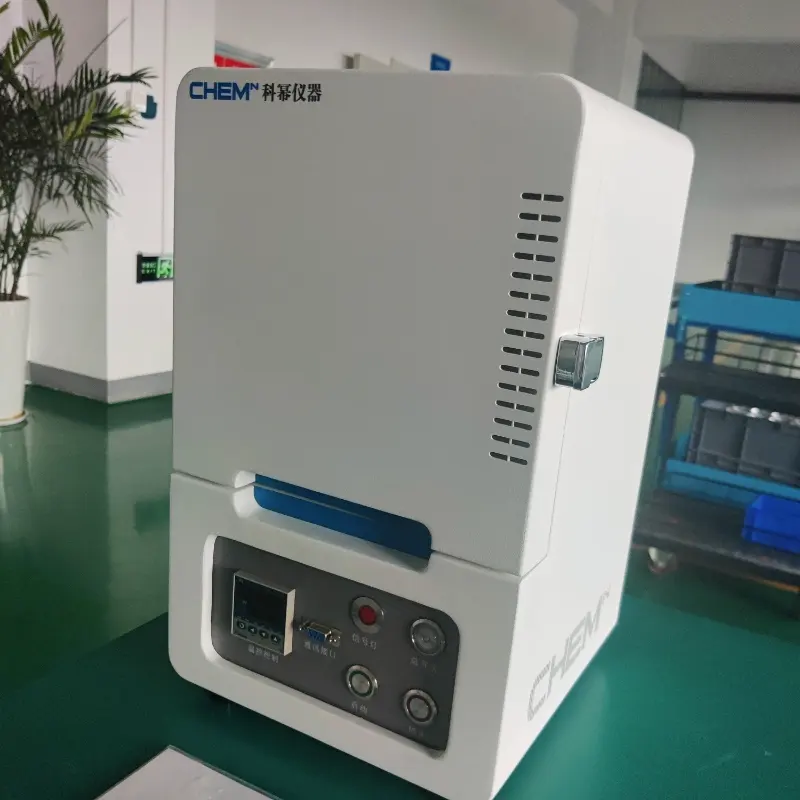

• General Laboratory Use: Muffle furnaces and tube furnaces for routine calcination and ashing.

Molybdenum Disilicide (MoSi2) Heating Elements: Extreme High Performance

When processes demand temperatures beyond the capabilities of SiC, Molybdenum Disilicide (MoSi2) is the material of choice. MoSi2 is an intermetallic compound—a cermet—that combines the excellent high-temperature oxidation resistance of ceramics with the electrical and thermal conductivity of metals.

Key Characteristics of MoSi2

MoSi2 elements represent the pinnacle of resistance heating technology for oxidizing atmospheres, offering unparalleled temperature capabilities.

• Maximum Operating Temperature: Capable of reaching up to 1800°C (3272°F), with some specialized grades reaching 1900°C (3452°F) in air.
• The “Quartz Glass” Protective Layer: Similar to SiC, MoSi2 heating elements rely on a protective surface layer. At temperatures above 1000°C in an oxidizing atmosphere, a thin, dense, and highly adhesive layer of silica (SiO2 – quartz glass) forms on the surface. This layer effectively halts further oxidation.
• Electrical Characteristics: Unlike SiC, MoSi2 elements have a strongly positive, linear temperature coefficient of resistance. Their resistance at operating temperature is many times higher than at room temperature.
• Physical State at High Heat: At extreme temperatures (above ~1200°C), MoSi2 becomes plastic and loses its mechanical strength. Therefore, they are almost exclusively mounted vertically, hanging from the furnace roof, to prevent them from bending or breaking under their own weight.

Benefits Over SiC

• No Aging Effect: Unlike SiC, the resistance of MoSi2 does not change significantly over time. The protective silica layer is extremely stable. This means you do not need complex, variable-voltage power supplies designed to compensate for aging. A standard transformer/SCR setup sized for the element’s cold-to-hot resistance change is sufficient. Old and new elements can even be connected in series, which is impossible with SiC.
• Higher Temperature Capability: MoSi2 can easily operate at 1700°C-1800°C, providing a crucial margin for ultra-high-temperature processes.
• Rapid Heating and Cooling: The metallic nature of MoSi2 allows for very rapid heat-up and cool-down rates without the risk of thermal shock damage.

The “Pest” Oxidation Problem

While highly resistant to oxidation at extreme heat, MoSi2 is susceptible to a phenomenon called “pest oxidation” at low temperatures (typically between 400°C and 700°C). In this temperature range, if exposed to oxygen, the material can oxidize into a voluminous powder (molybdenum oxide and silica), completely destroying the element.

To prevent this, furnaces using MoSi2 must not be held in this critical temperature zone for extended periods. They must heat rapidly through the 400°C-700°C range to reach temperatures where the protective glassy layer can form safely.

Ideal Applications for MoSi2

• Advanced Ceramics Sintering: Firing zirconia (for dental applications), alumina, and other advanced technical ceramics requiring temperatures above 1500°C.
• Crystal Growth: Specialized furnaces for growing single crystals used in electronics.
• Glass Forehearths: Specialized zones in commercial glass manufacturing.
• Aerospace and Materials Research: Ultra-high-temperature testing and development of novel alloys and composites.

Head-to-Head Comparison: SiC vs. MoSi2

To aid in the selection process, the following table summarizes the critical differences between the two element types.

Atmosphere Considerations: A Crucial Variable

While both elements excel in air (oxidizing atmospheres), their performance varies significantly in other environments.

• Reducing Atmospheres (Hydrogen, Carbon Monoxide):
  • SiC: The protective SiO2 layer is stripped away in reducing atmospheres, leading to rapid degradation. Maximum temperatures must be strictly limited (often below 1350°C), and element lifespan is severely reduced.
  • MoSi2: Also suffers in reducing atmospheres as the silica layer is reduced. However, pre-oxidizing the elements (running them in air to build a thick protective layer) before introducing the reducing gas can temporarily extend their life. Specialized MoSi2 grades are available for demanding atmospheres.
• Nitrogen/Ammonia:
  • SiC: Nitridation can occur, altering the electrical properties and causing the elements to become brittle. Maximum operating temperatures must be lowered.
  • MoSi2: Reacts with nitrogen above 1500°C to form silicon nitride. If high-temperature nitrogen operation is required, the elements must first be pre-oxidized to establish a protective barrier.
• Vacuum:
  • Neither element is ideal for high-vacuum applications at their peak temperatures, as the protective oxide layers will dissociate, and the base materials may volatilize. Metallic elements (like Molybdenum or Tungsten wire) or Graphite are preferred for high-vacuum furnaces.

How to Choose: Decision Criteria

Selecting the right heating element requires a holistic view of your process. Consider the following factors:

1. Target Temperature: This is the ultimate decider. If you require continuous operation above 1550°C, MoSi2 is almost always the necessary choice. If your process peaks at 1300°C, SiC is perfectly adequate and more economical.
2. Process Cycle (Batch vs. Continuous): MoSi2 handles rapid thermal cycling (fast heat up and cool down) better than SiC, making it ideal for batch processes that require quick turnaround times.
3. Atmosphere: Carefully evaluate the gases present in your chamber. Both perform best in air. If using reactive or reducing gases, consult with the element manufacturer for specific grade recommendations and derating curves.
4. Furnace Design Limitations: Can your furnace accommodate vertically hanging elements (required for MoSi2)? Does your power supply have the capability to handle the massive voltage adjustments required by aging SiC elements?
5. Total Cost of Ownership: Don’t just look at the purchase price of the elements. Factor in the cost of the required power supply, the expected frequency of element replacement, and the cost of production downtime. While MoSi2 elements are more expensive upfront, their lack of aging and long lifespan often make them more cost-effective for continuous, high-temperature operations.

Conclusion

Both Silicon Carbide and Molybdenum Disilicide are indispensable technologies in the world of high-temperature thermal processing. SiC offers a rugged, cost-effective, and versatile solution for the vast majority of applications below 1500°C. It is the reliable workhorse of the industry.

However, when pushing the boundaries of material science—when extreme temperatures, rapid cycling, and long-term stability are non-negotiable—MoSi2 emerges as the superior choice.

By carefully matching the physical and electrical characteristics of these elements to the specific demands of your process—considering temperature, atmosphere, and power requirements—you can ensure the optimal performance, efficiency, and longevity of your thermal processing equipment.

FAQ

Q1: Can I replace my old SiC elements with new MoSi2 elements in my existing furnace?

A1: Generally, no. This is usually not a simple swap. Because their electrical characteristics are fundamentally different (SiC requires variable voltage for aging, MoSi2 has a huge current draw at cold startup), the power supply and control system must be entirely redesigned. Furthermore, MoSi2 elements must hang vertically, whereas SiC elements might be mounted horizontally in your current setup, requiring significant physical modifications to the furnace roof and chamber.

Q2: My MoSi2 elements turned into a yellowish powder and broke. What happened?

A2: This is a classic example of “pest oxidation.” It occurs when the elements are held in a low-temperature range (typically between 400°C and 700°C) in the presence of oxygen. The material fails to form its protective silica glass layer and instead oxidizes catastrophically. To prevent this, ensure your heating program ramps through this critical temperature zone as quickly as possible.

Q3: Why does my furnace with SiC elements struggle to reach its maximum temperature after a year of use?

A3: This is due to the “aging” of the SiC material. Over time, oxidation causes the electrical resistance of the elements to increase significantly. If your power supply has reached its maximum voltage output, it can no longer push enough power (watts) through the higher-resistance elements to maintain or reach the target temperature. It is a clear sign that the elements have reached the end of their lifespan and need to be replaced.
