In the complex and demanding world of industrial processing, the structural integrity of equipment is the linchpin of both operational safety and economic viability. Chemical processing, metallurgy, waste incineration, and advanced material synthesis often involve extreme environments where thermodynamic forces, chemical aggression, and physical abrasion converge. At the very heart of these operations lies the processing vessel, a critical piece of infrastructure that must withstand conditions that would easily destroy standard materials. The internal protective barrier of this vessel dictates not only the efficiency of the chemical reactions taking place but also the overall safety of the plant facility.
When plant managers, chemical engineers, and procurement specialists evaluate system upgrades or new installations, one of the most hotly debated engineering decisions is the selection of internal protective materials. Specifically, the debate often centers around whether to utilize advanced refractory ceramics or high-performance metallic alloys. Both categories of materials offer distinct advantages and harbor specific limitations. Making an incorrect choice can lead to catastrophic equipment failure, unscheduled operational downtime, massive financial losses, and severe safety hazards. This comprehensive guide provides an in-depth comparison of these two primary material classes, exploring their thermodynamic properties, mechanical resilience, chemical inertness, and lifecycle economics to help you make a highly informed, data-driven engineering decision.
The Demands of Extreme Processing Environments

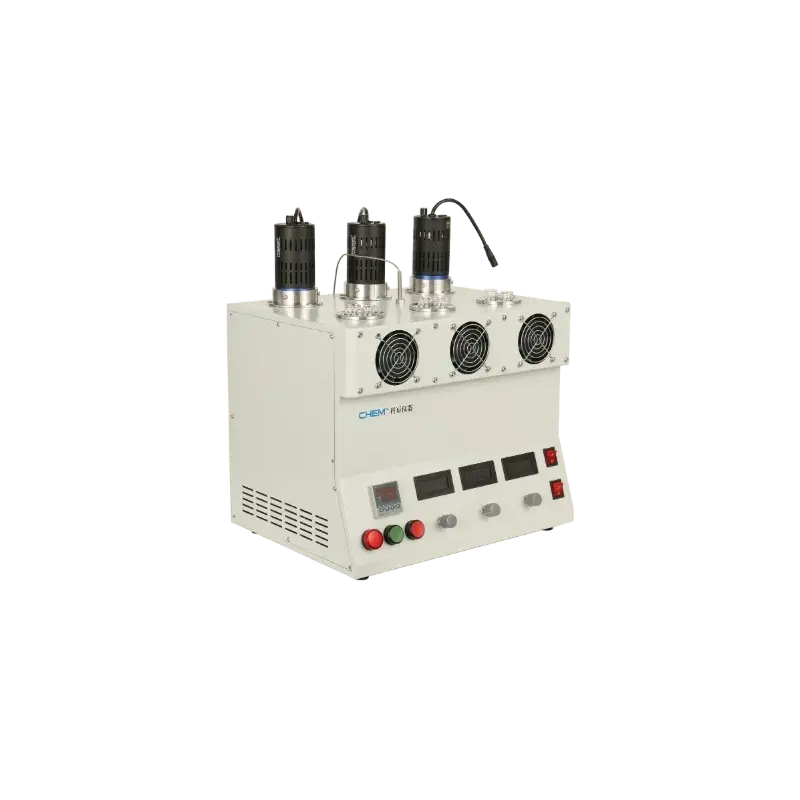

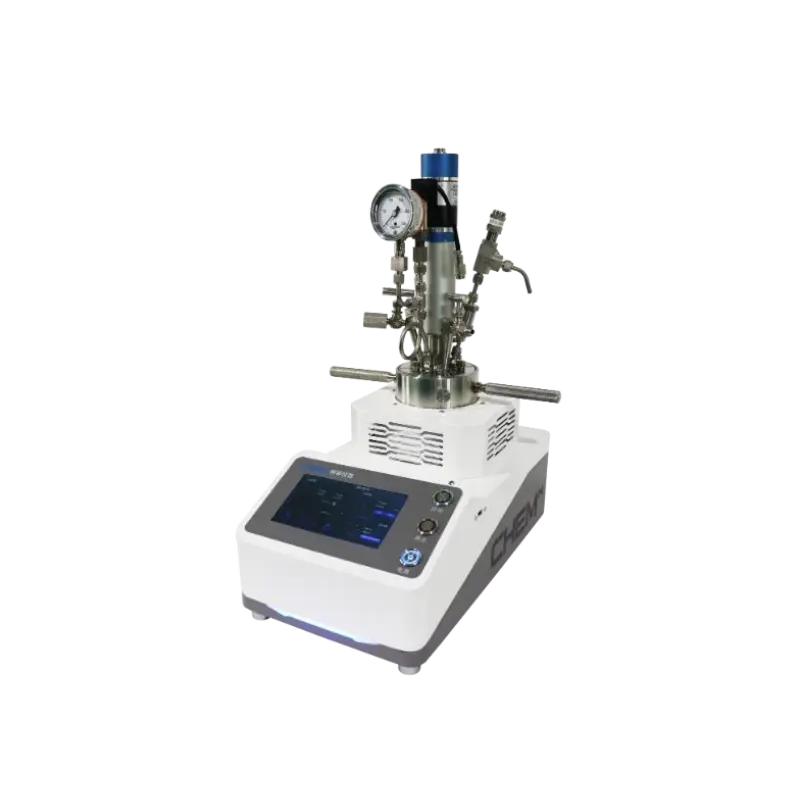

Before dissecting the specific properties of different materials, it is crucial to understand the multidimensional stresses present within extreme industrial environments. When engineering a High Temperature Mechanical Reactor, the stakes are incredibly elevated. The internal environment is rarely subjected to just one type of stress; rather, it is a synergistic attack that tests the absolute limits of material science.
Firstly, thermal stress is a constant factor. Operating temperatures in these systems can easily exceed 800°C (1472°F) and, in some specialized metallurgical or gasification processes, soar well past 1500°C (2732°F). However, raw heat is only one part of the equation. Thermal cycling—the rapid heating and cooling of the vessel—introduces severe thermal shock. Materials expand when heated and contract when cooled. If a material cannot accommodate these rapid volumetric changes, it will invariably crack, spall, or catastrophically fracture.
Secondly, chemical corrosion represents a relentless threat. Many high-heat processes involve the use or generation of highly corrosive gases, acidic vapors, caustic molten salts, or reactive slag. The protective layer must remain chemically inert, refusing to react with the process media. If the barrier degrades, the corrosive agents will quickly attack the underlying structural shell of the vessel, leading to immediate structural compromise.
Lastly, mechanical wear cannot be ignored. Agitators, rotating impellers, and the introduction of abrasive solid catalysts or raw particulate matter create a highly abrasive environment. The continuous scouring action against the interior walls demands a surface with immense hardness and abrasion resistance. Navigating this trifecta of thermal, chemical, and mechanical stress requires a meticulous evaluation of available material technologies.
The Anatomy of Advanced Ceramics
Historically, ceramics have been utilized for their exceptional heat resistance—dating back to ancient metallurgical furnaces. However, modern advanced ceramics are highly engineered compounds designed to deliver precise thermomechanical properties. Choosing a Ceramic Lining introduces unparalleled advantages in specific scenarios, particularly where absolute heat resistance and chemical inertness are non-negotiable.
Primary Ceramic Materials
The industrial ceramic landscape is dominated by a few key materials, each tailored for specific operational profiles:
- Alumina (Aluminum Oxide – Al2O3): Alumina is the workhorse of industrial ceramics. It offers excellent electrical insulation, high mechanical strength, and superb wear resistance. It is highly resistant to most acids and alkalis, making it a versatile choice for chemical processing.
- Silicon Carbide (SiC): Silicon carbide stands out for its extreme hardness, rivaling that of diamonds. It possesses outstanding thermal conductivity for a ceramic and boasts excellent thermal shock resistance, making it ideal for environments involving rapid temperature fluctuations and severe abrasion.
- Zirconia (Zirconium Dioxide – ZrO2): Zirconia is unique among ceramics due to its high fracture toughness. Through a process called transformation toughening, zirconia can actually resist crack propagation, giving it a level of mechanical resilience rarely found in traditional brittle ceramics.
The Advantages of Ceramics
The primary allure of advanced ceramics lies in their thermodynamic stability. They can routinely operate at temperatures where even the most advanced metallic superalloys would melt or lose all structural integrity. Furthermore, their atomic structure makes them highly inert; they do not readily oxidize or react with aggressive chemical solvents, acidic baths, or caustic substances.
Additionally, ceramics provide immense surface hardness. In processes involving fluid catalytic cracking or the movement of harsh slurries, ceramics maintain their surface integrity far longer than metals, resisting the continuous scouring action that causes premature erosion.
The Limitations of Ceramics
Despite their formidable strengths, ceramics possess a notable Achilles’ heel: brittleness. They lack ductility. When subjected to a sudden, high-impact mechanical shock—such as a heavy physical blow or structural shifting—ceramics do not bend or deform; they shatter. Furthermore, while materials like Silicon Carbide have improved thermal shock resistance, traditional ceramics can still crack if the temperature gradient is too steep and rapid. Installation is also highly specialized, often requiring precise bricklaying techniques, mortar curing, or the application of monolithic castables that necessitate lengthy drying and firing schedules.
High-Performance Metallic Alloys
While ceramics rule the realm of absolute temperature resistance and hardness, high-performance metallic alloys dominate applications demanding tensile strength, ductility, and rapid fabrication. Standard carbon steel is insufficient for extreme environments, necessitating the use of highly specialized alloys engineered with precise ratios of chromium, nickel, molybdenum, and cobalt.
Primary Metallic Materials
The selection of a metallic barrier depends heavily on the specific corrosive agents and maximum sustained temperatures:
- Stainless Steels (e.g., 310S, 316L): While standard stainless steel is common, high-temperature variants like 310S, which contains higher chromium and nickel content, offer excellent oxidation resistance up to around 1000°C (1832°F).
- Nickel-Based Superalloys (e.g., Inconel, Hastelloy): These are the elite tier of metallic solutions. Inconel 625 and 718, for instance, maintain high tensile strength and creep resistance at elevated temperatures while offering extraordinary resistance to oxidation and chloride-ion stress-corrosion cracking. Hastelloy is particularly renowned for its survival in highly acidic environments.
- Titanium and Zirconium Alloys: Used in highly specific, highly corrosive environments (such as aggressive chloride or sulfuric acid applications), though their temperature limits are generally lower than nickel-based superalloys.
The Advantages of Metals
The paramount advantage of metallic alloys is their ductility and fracture toughness. Metals can absorb kinetic energy. If subjected to a mechanical impact, a metal plate may dent, bend, or scratch, but it is highly unlikely to shatter catastrophically. This predictability makes metals highly reliable in environments prone to mechanical vibration, agitation, or shifting loads.
Metals also offer superior thermal conductivity. In processes where rapid heat transfer is required (either heating the product or drawing heat away to prevent exothermic runaways), metallic walls are vastly superior to insulating ceramics. Furthermore, fabrication, welding, modification, and repair of metal components are standard industrial practices, making initial installation and unexpected repairs faster and more straightforward than ceramic curing.
The Limitations of Metals
Metals begin to lose their mechanical strength (tensile and yield strength) rapidly as temperatures push past 1000°C (1832°F). At these extremes, metals are susceptible to “creep”—the slow, permanent deformation of a material under constant mechanical stress at high temperatures.
Furthermore, while superalloys are highly corrosion-resistant, they are rarely completely immune. Over time, aggressive chemical processes can strip away the protective oxide layers on the metal’s surface, leading to pitting, crevice corrosion, or galvanic corrosion, eventually requiring complete replacement of the component.
Comprehensive Comparative Analysis
To navigate the complex decision-making process, it is essential to evaluate these materials side-by-side across critical performance metrics. Ultimately, the goal is optimizing Reactor Durability under specific load conditions, balancing upfront capital expenditure against long-term operational peace of mind.
| Performance Metric | Advanced Ceramics (e.g., Alumina, SiC) | High-Performance Metals (e.g., Inconel) |
| Maximum Operating Temperature | Exceptional (Up to 1600°C – 2000°C+) | Moderate to High (Up to 1000°C – 1200°C) |
| Thermal Shock Resistance | Poor to Moderate (Requires gradual temp changes) | Excellent (Accommodates rapid heating/cooling) |
| Mechanical Impact Resistance | Low (Brittle, prone to cracking/shattering) | High (Ductile, absorbs kinetic energy well) |
| Abrasion & Wear Resistance | Exceptional (Extreme hardness, diamond-like) | Moderate (Subject to eventual scoring and erosion) |
| Chemical Inertness | Outstanding (Resists most acids, alkalis, slags) | Good to Excellent (Depends heavily on specific alloy) |
| Thermal Conductivity | Generally Low (Acts as a thermal insulator) | High (Excellent for rapid heat transfer applications) |
| Installation Complexity | High (Requires specialized masonry, curing time) | Moderate (Standard welding, bolting, fabrication) |
| Upfront Capital Cost | Moderate to High (Material is cheaper, labor is high) | Very High (Raw materials like Nickel/Titanium are costly) |
Analyzing the Data
As the table illustrates, there is no single “perfect” material; rather, there are optimized materials for specific process envelopes. If your process involves static burning, gasification, or highly abrasive slurries at 1400°C, metallic options are immediately disqualified due to melting points and high-temperature creep. Conversely, if your process involves continuous heavy vibration, rapid temperature quenching, and the need to efficiently transfer heat outwards at 800°C, a brittle, insulating ceramic would cause the system to fail mechanically or thermally.
Installation and Engineering Challenges
The theoretical performance of a material is only as good as its physical installation. The engineering challenges associated with integrating these materials into a structural vessel are vastly different.
For ceramic applications, thermal expansion management is the most critical engineering hurdle. The outer steel shell of a vessel and the inner ceramic refractory expand at entirely different rates when heated. If the ceramic is installed tightly against the steel without compressible expansion joints (such as ceramic fiber papers or specialized mortar gaps), the expanding steel can pull the ceramic apart, or the expanding ceramic can crush itself against the cooler outer shell. Furthermore, installing castable refractories requires strict adherence to dry-out schedules. Heating a newly cast ceramic too quickly will cause trapped water to turn to steam, literally exploding the material from the inside out.
Metallic linings, often installed as clad plating, weld overlays, or solid internal sleeves, face different challenges. Welding dissimilar metals (e.g., welding a high-nickel alloy liner to a carbon steel pressure vessel) can induce galvanic corrosion or create brittle intermetallic zones at the weld seam. Furthermore, high-temperature cycling can cause continuous expansion and contraction of the metal liner, leading to thermal fatigue and eventual cracking at the weld joints over thousands of operational hours.
Maximizing Lifespan and Maintenance Strategies
The total cost of ownership extends far beyond the initial procurement and installation phases. Proactive maintenance is the cornerstone of extended Reactor Durability.
For systems relying on ceramics, routine inspections generally involve looking for spalling (surface flaking), deep cracking, or the erosion of mortar joints. Because ceramics cannot be “welded” back together, repairs often involve chipping out the damaged sections and recasting or re-bricking the localized area. This process, while seemingly localized, still requires significant downtime for the new material to properly cure and dry out before operations can resume.
For metallic systems, maintenance involves sophisticated non-destructive testing (NDT). Engineers use ultrasonic thickness gauging, dye penetrant inspections, and radiographic testing to detect microscopic stress-corrosion cracks, weld fatigue, or generalized wall thinning. Minor cracks can often be gouged out and re-welded in situ, allowing for relatively rapid turnarounds during planned plant outages. However, if a metallic system suffers from severe creep deformation, the entire component usually requires complete replacement, representing a massive capital expense.
Future Trends in Protective Materials
The boundaries of material science are continually expanding. Engineers are increasingly moving away from purely binary choices between metals and ceramics, looking toward advanced composites and multi-layered defense strategies.
One significant trend is the rise of Ceramic Matrix Composites (CMCs). These materials embed ceramic fibers (like silicon carbide fibers) within a ceramic matrix. This structure forces microscopic cracks to navigate around the fibers, dramatically increasing the fracture toughness of the material and effectively bridging the gap between ceramic heat resistance and metallic durability.
Another growing field is advanced plasma-sprayed coatings. Instead of installing thick solid barriers, industries are using thermal spray technologies to bond a microscopic layer of high-performance ceramic (like Yttria-Stabilized Zirconia) directly onto a superalloy substrate. This provides the chemical and thermal protection of a ceramic while retaining the structural ductility and thermal conductivity of the underlying metal.
Conclusion
The pursuit of industrial efficiency demands uncompromising reliability from processing equipment. Whether upgrading an existing system or commissioning a new High Temperature Mechanical Reactor, the choice between metallic alloys and a precision-engineered Ceramic Lining dictates long-term success.
By meticulously analyzing your process parameters—specifically maximum continuous temperature, thermal cycling frequency, chemical aggressiveness, and mechanical agitation—you can pinpoint the exact material profile required. While metals offer indispensable ductility and ease of fabrication, ceramics remain the undisputed champions of absolute thermal and chemical resistance. Ultimately, aligning the material’s fundamental properties with your specific operational stressors is the only proven pathway to ensuring safety, maximizing uptime, and achieving optimal operational profitability.
FAQs
1. Can I use a combination of both metals and ceramics in my equipment?
Yes, this is highly common and often the optimal engineering solution. Many modern vessels utilize a robust, pressure-bearing outer shell made of carbon or stainless steel, which is then internally insulated with a thick layer of ceramic refractory bricks or castables. This protects the outer metallic shell from extreme heat and chemical attack while leveraging the metal’s tensile strength to maintain structural integrity under high pressure. Additionally, thermal spray coatings allow thin ceramic layers to be bonded directly to metallic components.
2. How do I know if my current protective material is failing before a catastrophic breach occurs?
Monitoring requires a combination of real-time sensor data and scheduled physical inspections. In thermal applications, a sudden or localized spike in the temperature of the vessel’s outer shell is a primary indicator that the internal insulation layer has cracked, thinned, or fallen away. For metallic systems, regular non-destructive testing (NDT), such as ultrasonic thickness measurements, can track erosion and corrosion rates over time, allowing engineers to predict remaining lifespan and schedule replacements before a structural failure happens.
3. If my process involves extremely rapid heating and cooling, which material should I choose?
If thermal shock (rapid temperature fluctuation) is your primary stress factor, high-performance metallic alloys are generally the safer choice. Metals possess ductility, allowing them to expand and contract rapidly without fracturing. Traditional ceramics are brittle and highly susceptible to cracking under severe thermal shock. If the temperatures are too high for metals, you must utilize highly specialized ceramics designed specifically for thermal shock resistance, such as Silicon Carbide (SiC) or advanced Ceramic Matrix Composites (CMCs), though these represent a significant capital investment.
