Technical parameters

Product features

• Yudian AI-3756P (7-inch) colorful touch screen human machine interface is adopted for temperature control.
• The double-layer air cooling structure of the shell keeps the surface temperature ≤ 60 ℃.
• Real-time USB data export.
• The chamber is made of high purity alumina microcrystallite fiber subject to vacuum forming under high temperature,providing a uniform hermal field that can save energy by more than 50%.
• The quick-opening flange structure enables to operate easily.

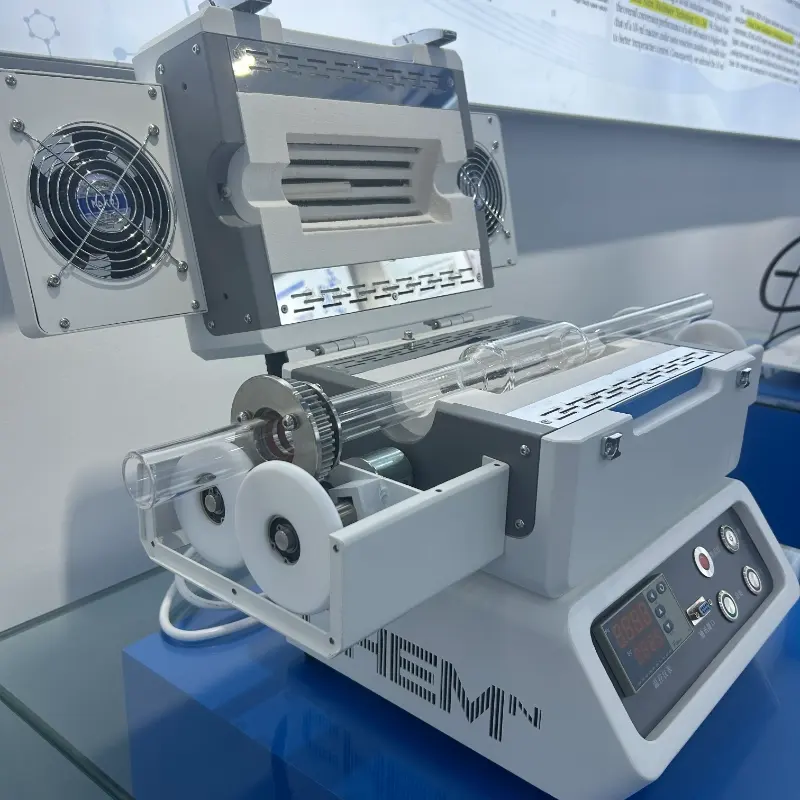

The chamber is made of high purity alumina microcrystallite fiber subject to vacuum forming under high temperature. The heating element is resistance wire. The cooling system adopts double-layer air cooling structure, providing a surface temperature ≤60 ℃.

The vacuum chamber is made of quartz tubes that run through the whole body. Both ends of the furnace tube are sealed with stainless steel flanges so that the furnace can work in a vacuum or atmosphere environment.

The heating elements are parallel to the furnace tube and uniformly distributed outside the furnace tube to effectively guarantee the uniformity of the thermal field.

With Yudian AI-3756P touch screen type temperature controller/AI-516P intelligent controller and K-type thermocouple, temperature control through 30 programmable segments with a temperature control precision of ±1 ℃ is realized.

COMPANY INTRODUCTION

Anhui Kemi Instrument Co. Ltd was founded by a creative team from University of Science and Technology of China （USTC）in 2014, aiming to design and provide high-quality and customized synthesis equipment for global R&D users.We have SGS, ISO9001 and CE certificates. Our company is committed to design and provide “safe, convenient, accurate and efficient” equipment, and accelerate R&D progress with our professionalism and quality. Up to 2025, we have over 300 clients from over 35 countries, and our products have helped R&D users to publish over 900 papers in top-tier journals.

WHY CHOOSE US ?

In a global marketplace filled with choices, we stand out as a reliable and innovative partner for your business needs. Our commitment to quality, efficiency, and customer satisfaction has made us the preferred choice for clients worldwide.

Adhere to strict international quality standards (ISO/CE certified). Each product undergoes 12 inspection processes to ensure zero defects.

With over 12 years in the industry, we’ve served 20000+ clients across 30+ countries, providing customized solutions for diverse needs.

Direct factory supply cuts out middlemen, offering you competitive prices with 10-15% savings compared to the market average.

Benefit from our efficient supply chain—80% of orders are delivered within 15 days, even for large volumes.

24/7 multilingual support (English, Spanish, Mandarin) and a dedicated account manager ensure seamless communication from inquiry to after-sales. Please contact us for more information.

Our R&D team, consisting of 50+ experts, launches 10+ new products annually, keeping you ahead of market trends.

Shipment & Package

What are tube furnaces used for?

Tube furnaces are essential, high-precision thermal processing tools used across a wide spectrum of scientific and industrial fields. Their primary advantage lies in providing exceptional temperature uniformity and a tightly controlled atmosphere, which is indispensable for sensitive and advanced applications.

Here is an overview of their key application areas.

Materials Science & Nanotechnology

This is a core area for tube furnace use, particularly in the synthesis and processing of advanced materials.

• Nanomaterials Synthesis: Tube furnaces, often configured for Chemical Vapor Deposition (CVD), are crucial for producing carbon nanotubes (CNTs), graphene nanosheets, boron nitride, and various metal oxide nanoparticles.
• Advanced Material Processing: They are used for the sintering, annealing, and heat treatment of a vast range of materials, including ceramics, powder metals, and composites.
• Crystal Growth: They provide the precise, controlled cooling profiles required for growing high-purity single crystals.

Semiconductor & Electronics Industry

The precise atmospheric control of tube furnaces is vital for semiconductor manufacturing.

• Key Semiconductor Processes: They are used for critical processes such as diffusion, oxidation, and annealing of semiconductor materials.
• Thin-Film Deposition: Tube furnaces facilitate processes like Low-Pressure Chemical Vapor Deposition (LPCVD) to create thin films of materials like silicon nitride, phosphosilicate glass, and polysilicon for solar cells and microelectronics.
• Advanced Electronics R&D: They are essential for research into next-generation microelectronics and optoelectronics.

Energy Sector

The energy sector relies on tube furnaces for developing and testing new materials.

• Battery Technology: They are used to sinter and heat-treat critical lithium-ion battery components, including cathode materials (like lithium iron phosphate, lithium cobalt oxide) and anode materials.
• Fuel Cell and Energy Research: They are used in the preparation of fuel cell materials and testing of catalysts for energy applications.

Chemical & Petrochemical Industry

Tube furnaces are widely used for chemical processing and analysis.

• Catalyst Research: They are a standard tool for catalyst activation, testing, and reaction mechanism studies.
• Thermal & Chemical Processes: Applications include calcination, thermal decomposition (pyrolysis), purification, and sublimation of various chemical compounds.
• Gas Reactions: They are well-suited for studying and conducting gas-phase chemical reactions under controlled atmospheres.

Traditional & Advanced Industries

Tube furnaces also serve many established industrial fields.

• Metallurgy: Used for heat treatment of metals and alloys, including processes like annealing, brazing, and tempering.
• Glass & Ceramics: Applied in glass processing, softening, and ceramic sintering.
• Aerospace & High-Tech: Used in the processing of specialty alloys, composites, and other materials for demanding applications like aerospace.

Academic & General Laboratory Research

Tube furnaces are a staple in universities and research institutions for a wide range of experiments, including thermal analysis, thermocouple calibration, and general high-temperature material testing
