Technical Parameters
| Design volume | 10L |
| Maximum operating temperature | 300 ℃ |
| Design pressure | 103bar (Max 350bar) |
| Heating mode | Embedded stainless steel heating module |
| Heating power | 3 kW |
| Stirring speed | Depending on the stirring paddle and material viscosity |
| Stirring method | High-torque magnetic coupling stirring |

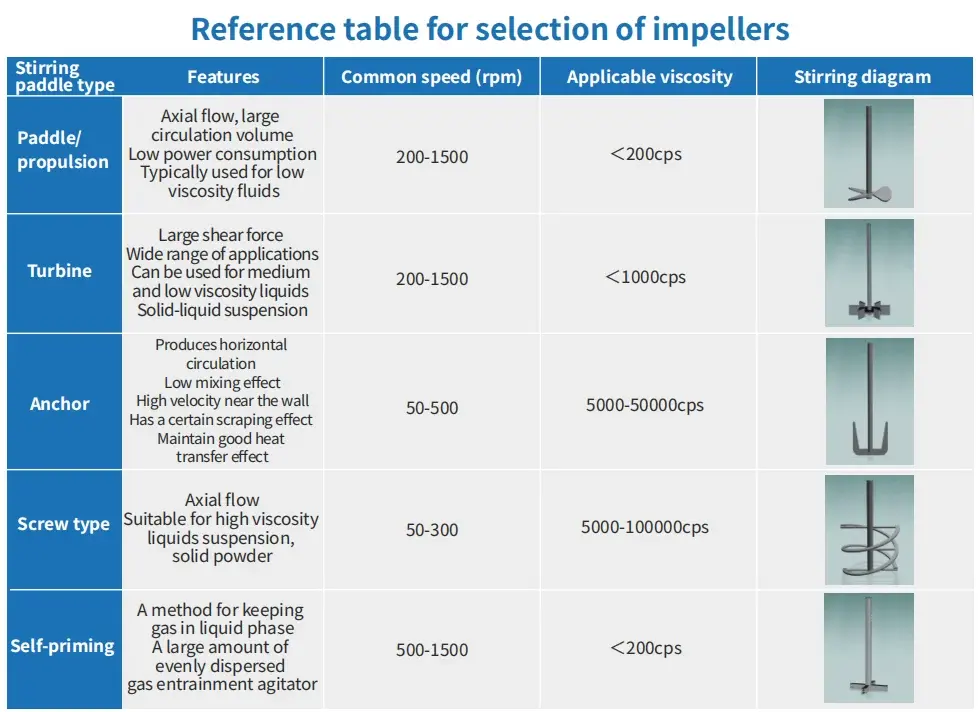

| Stirring paddle | You can choose from Attached the paddle optional table in the following (The default is propeller stirring paddle) |
| Reactor structure | Kettle cover is fixed and kettle body is raised and lowered |
| Material of reactor | 316 L stainless steel, Hastelloy C-276, etc.(optional) |
| Pressure sensor | MEAS |
| Pressure gauge | ASHCROFT |
| Inlet/Outlet valve | Swagelok |
| Safety valve | Fitok Proportional Relief Valve |
| Rupture valve | Dalian Polytechnic Safety Equipment Co. |
| Heating furnace | New armoured ring heating furnace |
| Control System | Over-temperature automatic power-off 7-inch touch screen, displaying the temperature, rotation speed, pressure and operating time USB interface, supporting data export Power supply configuration: 200 – 240 V/AC, 50 – 60 Hz |
Safety
1.Reactor head and body are machined from soild metal bars without welding.
2.Tenon jointing seal construction to provide stable sealing under high pressure.
3.Interlock protection of heating power-off and sound alarm when over temp or over pressure.
Convenient
1.Sensitive touch screen.
2.Concise and intuitive UI man-machine interface.
3.USB interface for data download.
Accurate
1.Intelligent PID temperature control mode.
2.Digital display stepless speed regulation.
3.Embedded heating module with faster heat transfer.

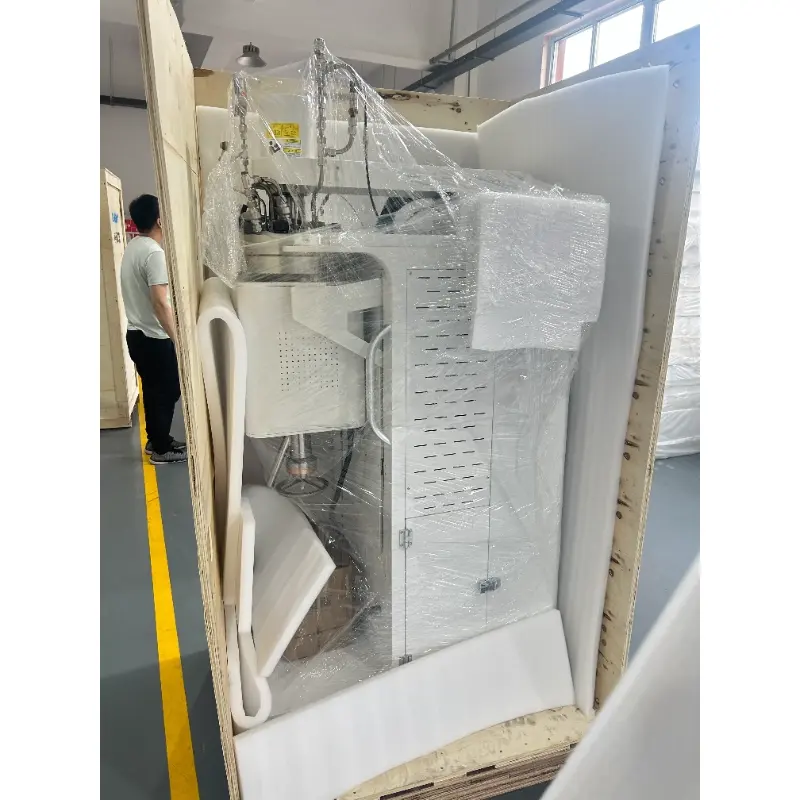

Package & Factory
